MainFrame Class Reference

#include <mainFrame.h>

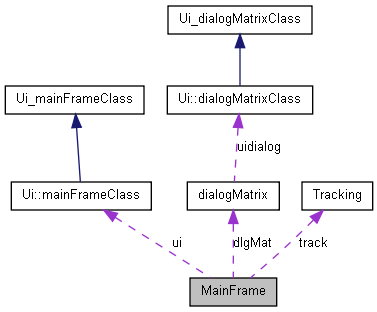

Collaboration diagram for MainFrame:

[legend]

Public Member Functions
	MainFrame (QWidget *parent=0, Qt::WFlags flags=0)
Protected Member Functions
void	closeEvent (QCloseEvent *event)
Private Slots
void	openDir ()
void	loadPreLaplace4 ()
void	loadPreLaplace8 ()
void	loadPreSobelX ()
void	loadPreSobelMin ()
void	loadPreGaussianLoG ()
void	loadPreLoG ()
void	loadPreThres ()
void	loadPreCanny ()
void	initPre ()
void	loadSegContourThres ()
void	loadSegContourSnake ()
void	loadSegHoughStdCanny ()
void	loadSegHoughProCanny ()
void	loadSegScaleSpace ()
void	loadSegScaleSpaceThres ()
void	loadSegBlobsThres ()
void	loadSegBlobsCanny ()
void	initSeg ()
void	openDialogMatrix ()
void	showAbout ()
void	loadImageSeq ()
void	loadAutoSeq ()
void	loadStepSeq ()
void	loadBackSeq ()
void	loadNextSeq ()
void	changeContourCheck (bool)
void	changeHoughParam (int)
void	changeBlobToTrack (bool)
void	changeBlobKalmanOpts (bool)
void	addKalmanPrediction ()
void	addKalmanBlobPrediction ()
void	updateKalmanPrediction ()
void	updateKalmanBlobPrediction ()
void	clearKalman ()
void	clearBlobKalman ()
Private Member Functions
void	initFilterMatrix ()
QStringList	loadSeq ()
void	clearCommonKalman ()
void	loadStepImage (int imageListCount)
void	ableStepOptions ()
void	disableStepOptions ()
IplImage *	paintCutImage (IplImage *src)
IplImage *	getGrayImage (IplImage *)
void	getDlgMatrixValues ()
Static Private Member Functions
static void	onMouseSelect (int event, int x, int y, int flags, void *param)
static void	onMouseUpdate (int event, int x, int y, int flags, void *param)
Private Attributes
Ui::mainFrameClass	ui
QString	qPathLoaded
int	closeCvWindow
QStringList	fileList
CBlobResult	filterBlobs
CBlob	blobBegin
QString	sSeparator
int	iStepFrame
float	filterData [9]
dialogMatrix	dlgMat
Static Private Attributes
static Tracking	track

Detailed Description

Class MainFrame. QMainWindow object, main interfaz front, allowing almost all user interactions. It contains the image sequence iteration methods

Definition at line 24 of file mainFrame.h.

Constructor & Destructor Documentation

MainFrame::MainFrame	(	QWidget *	parent = `0`,
		Qt::WFlags	flags = `0`
	)

Constructor.

Parameters:

	parent	Parent widget
	flags	Qt Flags

Definition at line 5 of file mainFrame.cpp.

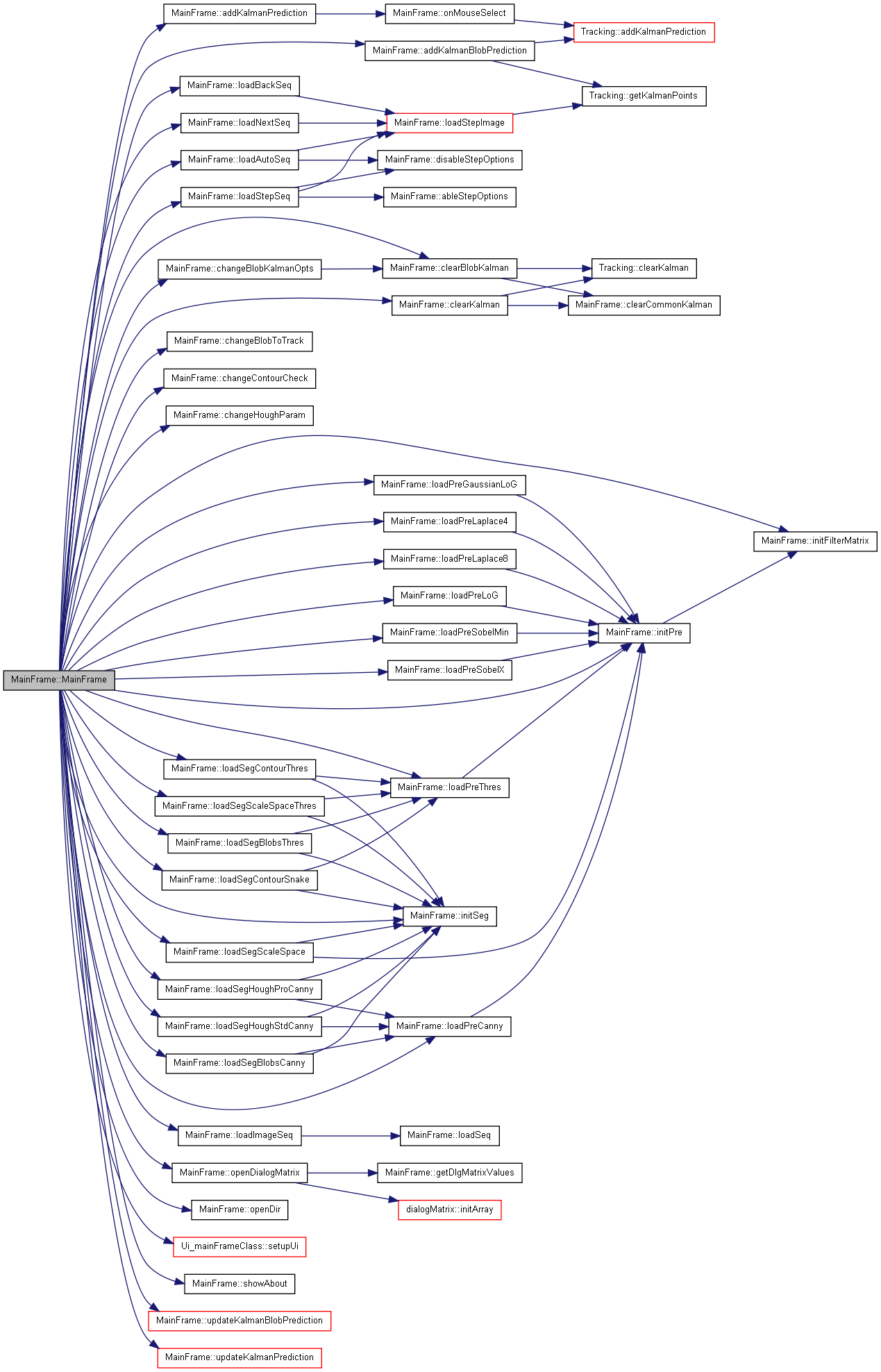

Here is the call graph for this function:

Member Function Documentation

void MainFrame::ableStepOptions ( ) [private]

Private function. Able Back and Next step buttons

Definition at line 703 of file mainFrame.cpp.

Here is the caller graph for this function:

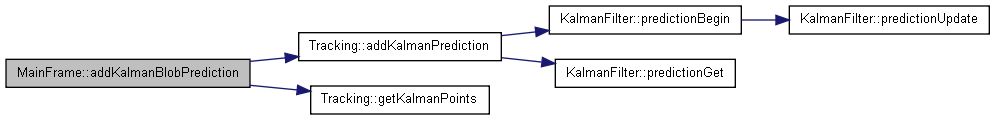

void MainFrame::addKalmanBlobPrediction ( ) [private, slot]

Private slot. Kalman blob select

Definition at line 353 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::addKalmanPrediction ( ) [private, slot]

Private slot. Kalman point select

Definition at line 350 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::changeBlobKalmanOpts ( bool bCheck ) [private, slot]

Private slot. To enable - disable Blob Tracking options

Definition at line 315 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::changeBlobToTrack ( bool bCheck ) [private, slot]

Private slot. To disable Blob Tracking check

Definition at line 310 of file mainFrame.cpp.

Here is the caller graph for this function:

void MainFrame::changeContourCheck ( bool bCheckContour ) [private, slot]

Private slot. To disable rectangle contour options

Definition at line 283 of file mainFrame.cpp.

Here is the caller graph for this function:

void MainFrame::changeHoughParam ( int index ) [private, slot]

Private slot. To enable - disable Hough options

Definition at line 290 of file mainFrame.cpp.

Here is the caller graph for this function:

void MainFrame::clearBlobKalman ( ) [private, slot]

Private slot. Kalman blob clear

Definition at line 457 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::clearCommonKalman ( ) [private]

Private function. Clear Kalman common options

Definition at line 475 of file mainFrame.cpp.

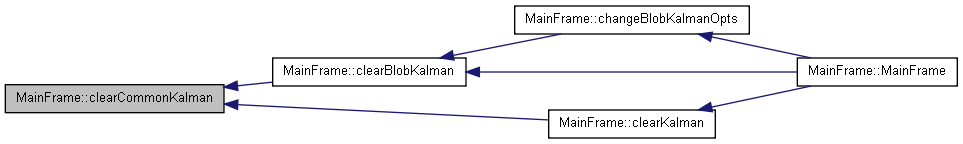

Here is the caller graph for this function:

void MainFrame::clearKalman ( ) [private, slot]

Private slot. Kalman clear

Definition at line 441 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::closeEvent ( QCloseEvent * event ) [protected]

Close main window event.

Parameters:

event

Close event

Definition at line 76 of file mainFrame.cpp.

void MainFrame::disableStepOptions ( ) [private]

Private function. Disable Back and Next step buttons

Definition at line 708 of file mainFrame.cpp.

Here is the caller graph for this function:

void MainFrame::getDlgMatrixValues ( ) [private]

Recover matrix values from dialog

Definition at line 277 of file mainFrame.cpp.

Here is the caller graph for this function:

IplImage * MainFrame::getGrayImage ( IplImage * src_image ) [private]

Return gray image from color or whatever

Definition at line 713 of file mainFrame.cpp.

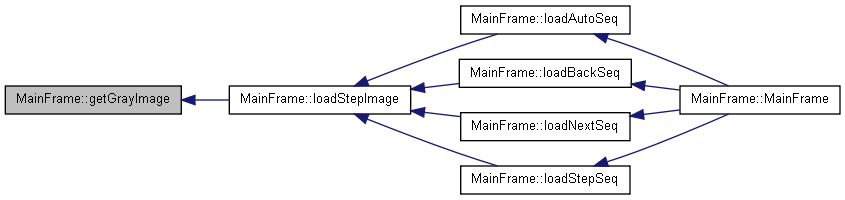

Here is the caller graph for this function:

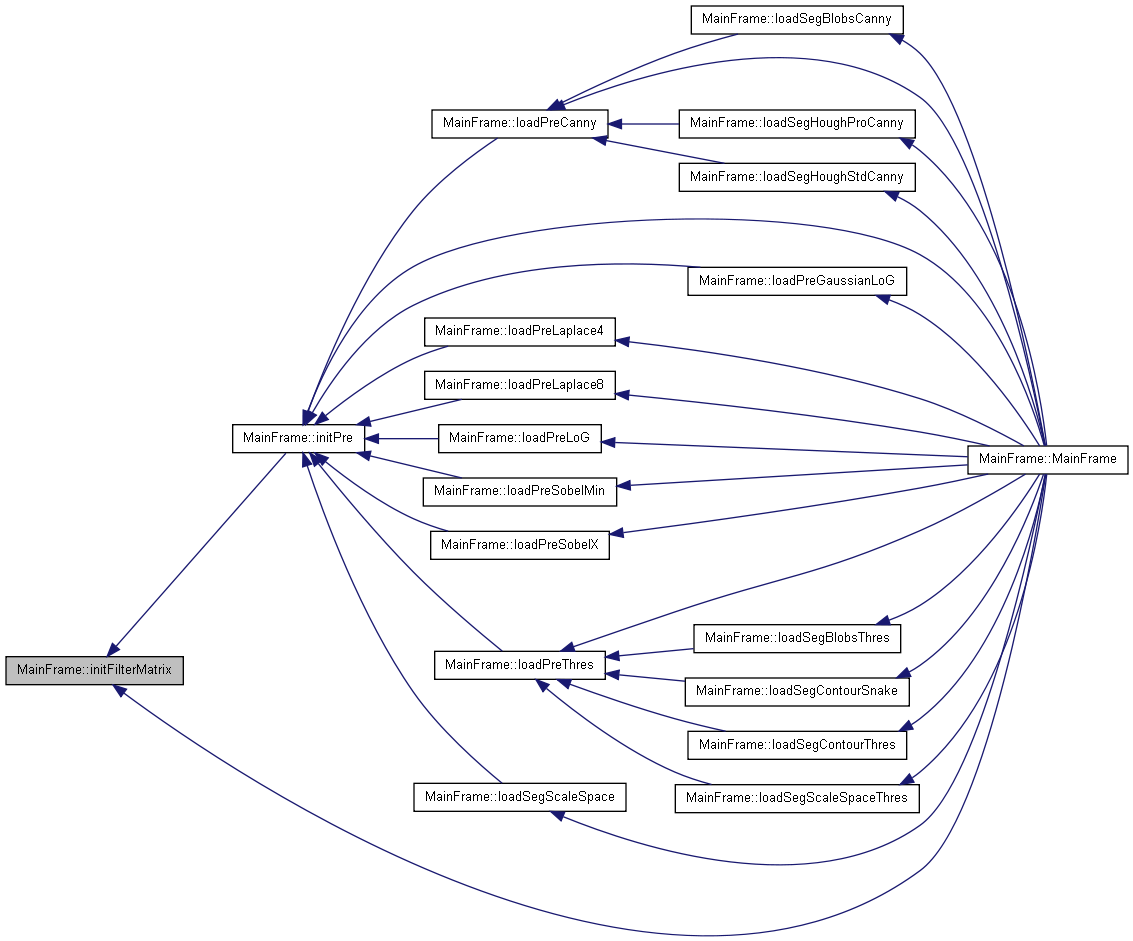

void MainFrame::initFilterMatrix ( ) [private]

Private function. Initialize filter matrix

Definition at line 89 of file mainFrame.cpp.

Here is the caller graph for this function:

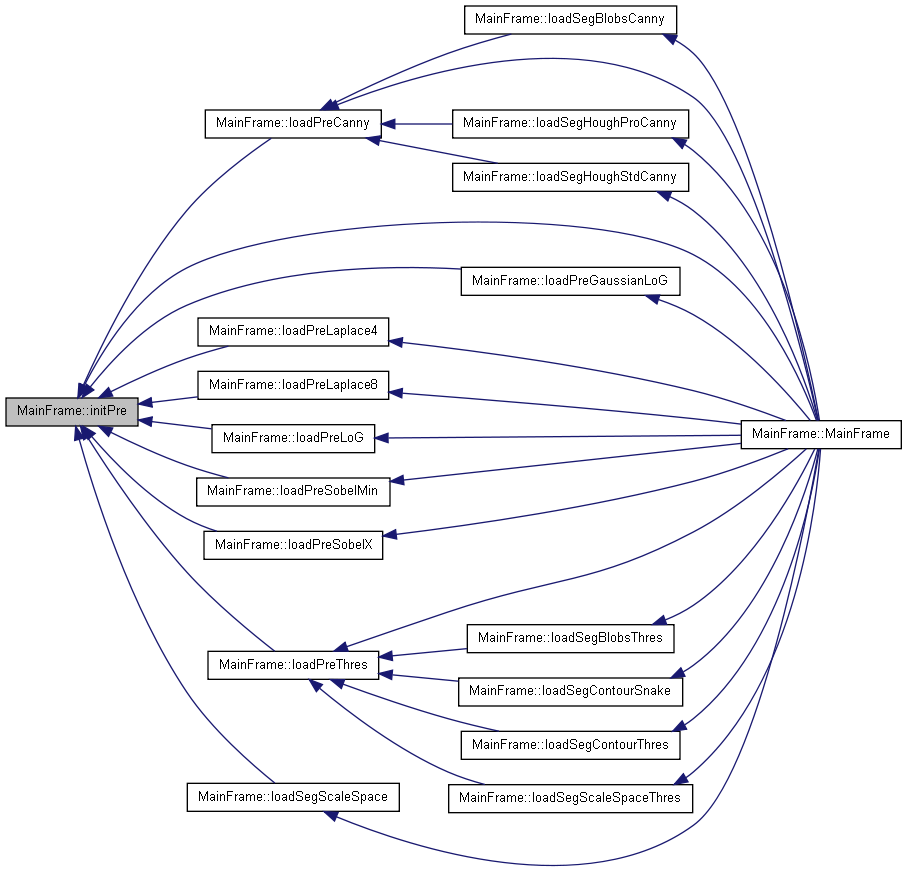

void MainFrame::initPre ( ) [private, slot]

Private slot. Initialize preprocessor options

Definition at line 95 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

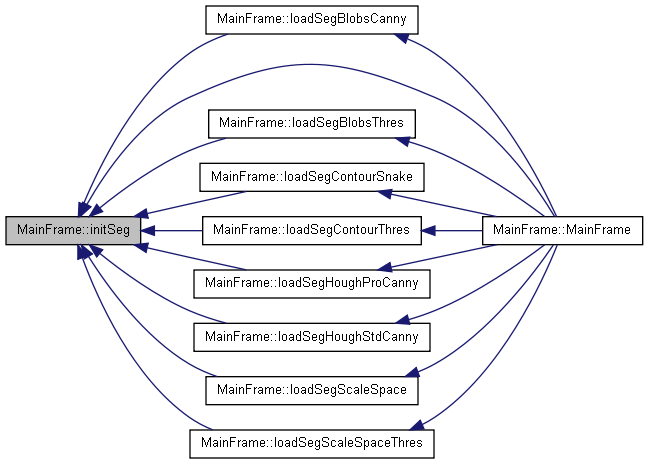

void MainFrame::initSeg ( ) [private, slot]

Private slot. Initialize segmentation options

Definition at line 106 of file mainFrame.cpp.

Here is the caller graph for this function:

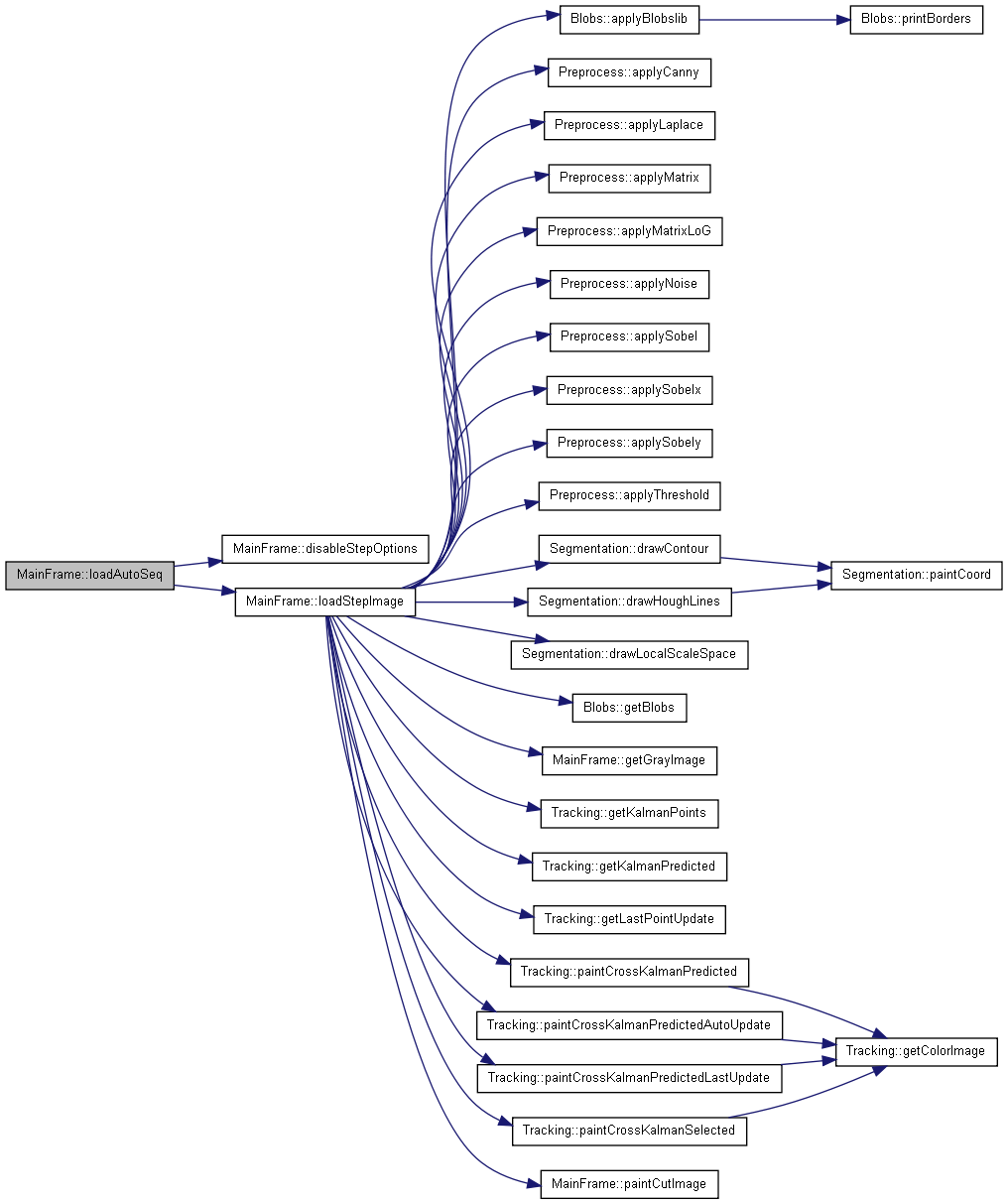

void MainFrame::loadAutoSeq ( ) [private, slot]

Private slot. Try to show sequence image every FPS milliseconds

Definition at line 640 of file mainFrame.cpp.

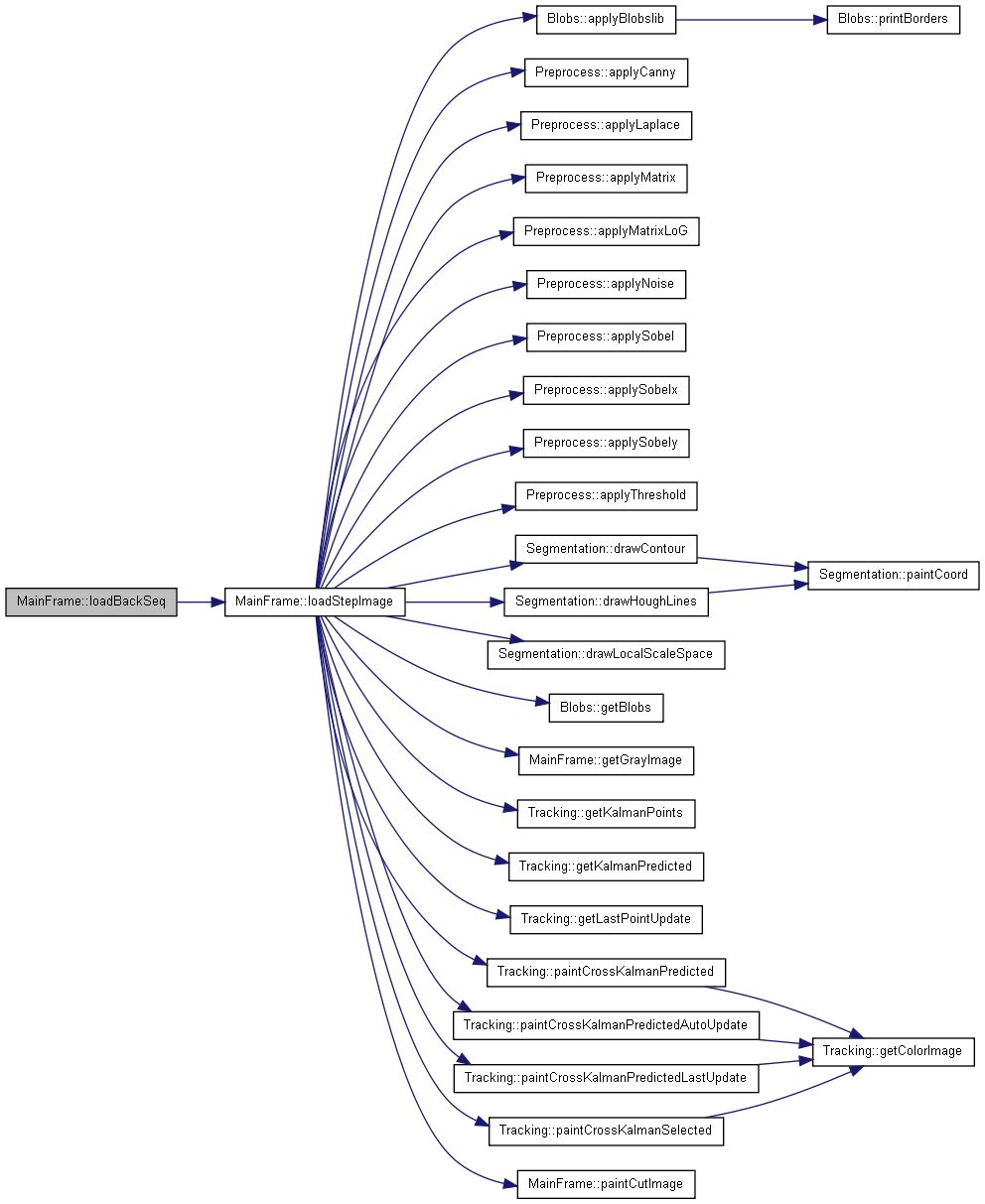

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadBackSeq ( ) [private, slot]

Private slot. Show step by step backward image

Definition at line 695 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadImageSeq ( ) [private, slot]

Private slot. Try to load image sequence from path

Definition at line 605 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadNextSeq ( ) [private, slot]

Private slot. Show step by step forward image

Definition at line 687 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadPreCanny ( ) [private, slot]

Private slot. Load predefined Canny configuration

Definition at line 195 of file mainFrame.cpp.

Here is the call graph for this function:

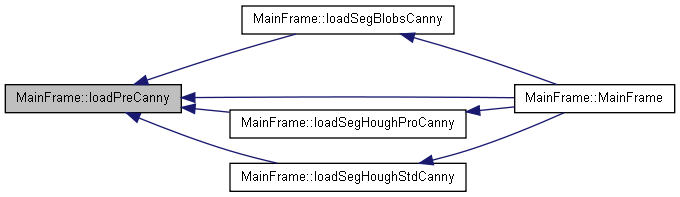

Here is the caller graph for this function:

void MainFrame::loadPreGaussianLoG ( ) [private, slot]

Private slot. Load predefined LoG with Gaussian noise filter

Definition at line 167 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadPreLaplace4 ( ) [private, slot]

Private slot. Load predefined laplace 4

Definition at line 120 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadPreLaplace8 ( ) [private, slot]

Private slot. Load predefined laplace 8

Definition at line 133 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadPreLoG ( ) [private, slot]

Private slot. Load predefined LoG

Definition at line 177 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadPreSobelMin ( ) [private, slot]

Private slot. Load predefined Sobel Min(x,y)

Definition at line 156 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadPreSobelX ( ) [private, slot]

Private slot. Load predefined Sobel X

Definition at line 146 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

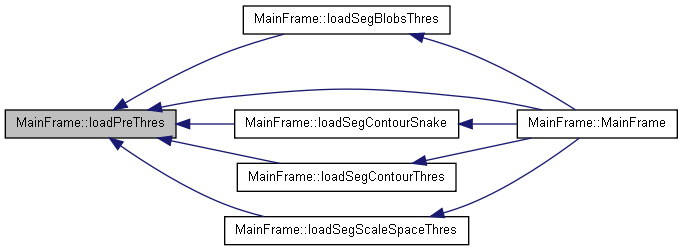

void MainFrame::loadPreThres ( ) [private, slot]

Private slot. Load predefined useful Threshold and Noise filters

Definition at line 186 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegBlobsCanny ( ) [private, slot]

Private slot. Load predefined blobslib configuration with Canny

Definition at line 257 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegBlobsThres ( ) [private, slot]

Private slot. Load predefined blobslib configuration with threshold

Definition at line 251 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegContourSnake ( ) [private, slot]

Private slot. Load predefined Contour and Snake detected

Definition at line 209 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegContourThres ( ) [private, slot]

Private slot. Load predefined Contour configuration with Threshold

Definition at line 203 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegHoughProCanny ( ) [private, slot]

Private slot. Load predefined Hough Probabilistic with Canny

Definition at line 224 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegHoughStdCanny ( ) [private, slot]

Private slot. Load predefined Hough Standard with Canny

Definition at line 218 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegScaleSpace ( ) [private, slot]

Private slot. Load predefined Scale-Space configuration

Definition at line 233 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::loadSegScaleSpaceThres ( ) [private, slot]

Private slot. Load predefined Scale-Space configuration with threshold

Definition at line 242 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

QStringList MainFrame::loadSeq ( ) [private]

Private function. To get QStringList

Definition at line 597 of file mainFrame.cpp.

Here is the caller graph for this function:

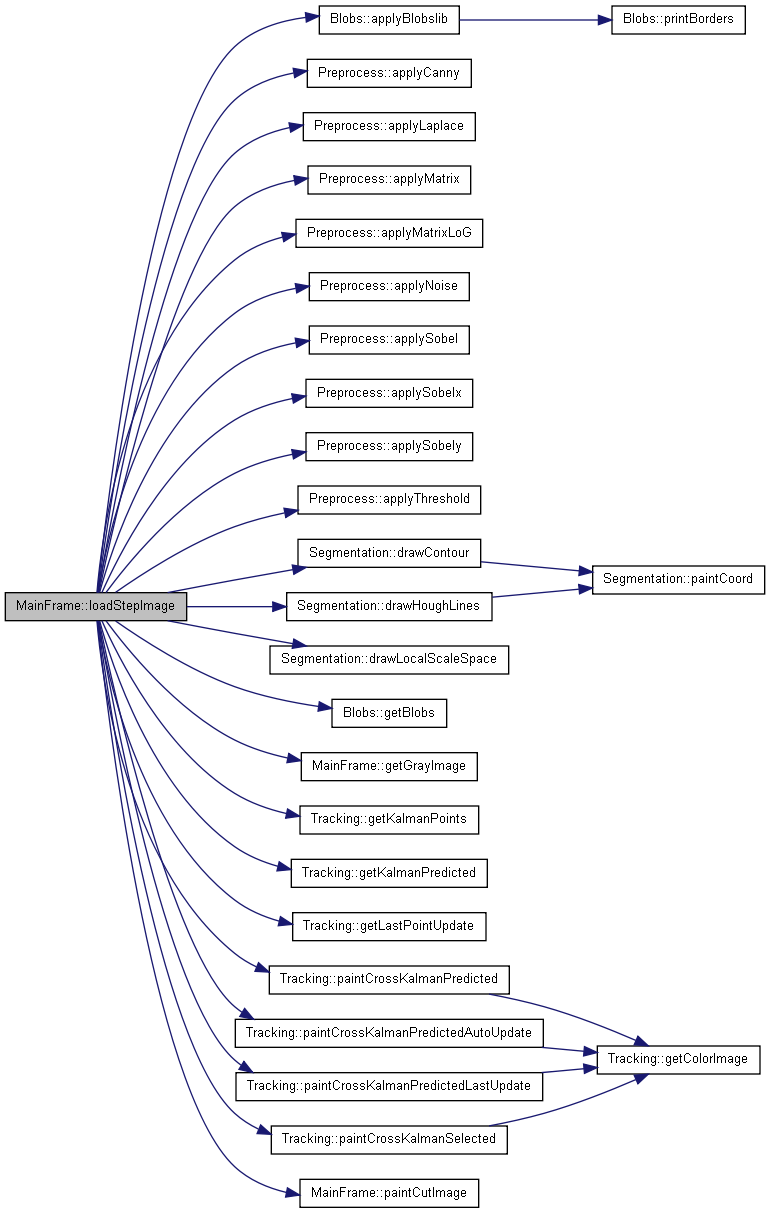

void MainFrame::loadStepImage ( int imageListCount ) [private]

Private loadStepImage. Given an index, load image from fileStepList

Parameters:

imageListCount

int index

Definition at line 486 of file mainFrame.cpp.

Here is the call graph for this function:

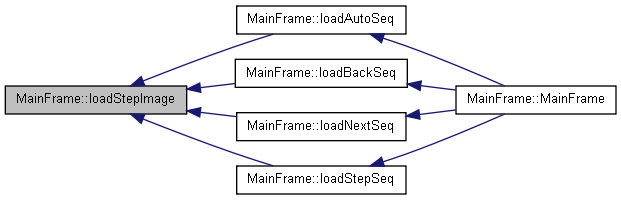

Here is the caller graph for this function:

void MainFrame::loadStepSeq ( ) [private, slot]

Private slot. Show sequence image step by step

Definition at line 666 of file mainFrame.cpp.

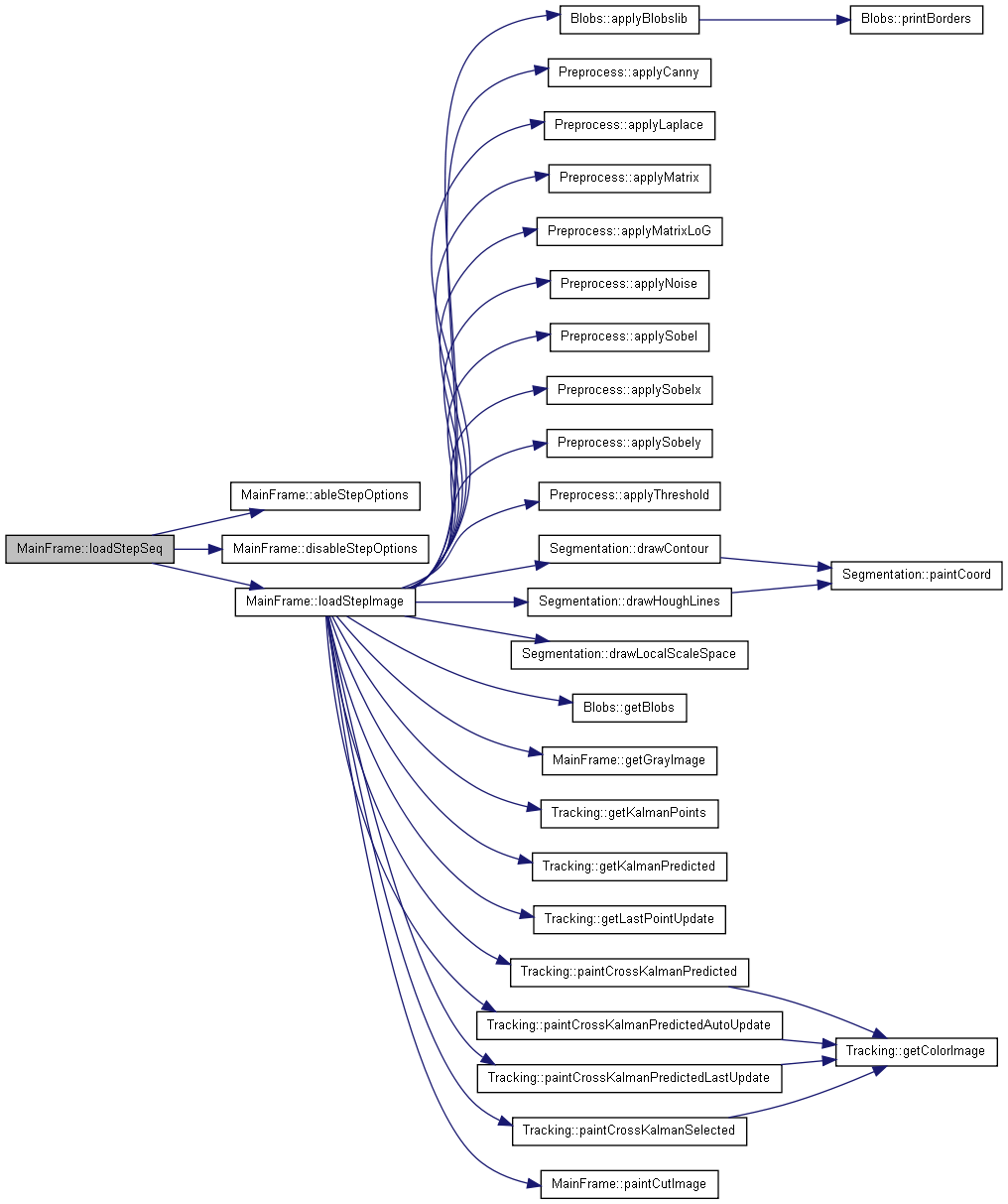

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::onMouseSelect	(	int	event,
		int	x,
		int	y,
		int	flags,
		void *	param
	)			`[static, private]`

On mouse function when button Kalman Select is pressed

Definition at line 374 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::onMouseUpdate	(	int	event,
		int	x,
		int	y,
		int	flags,
		void *	param
	)			`[static, private]`

On mouse function when button Kalman Update is pressed

Definition at line 405 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::openDialogMatrix ( ) [private, slot]

Private slot. Open Filter-Matrix menu dialog

Definition at line 265 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::openDir ( ) [private, slot]

Private slot. Open image sequence directory

Definition at line 82 of file mainFrame.cpp.

Here is the caller graph for this function:

IplImage * MainFrame::paintCutImage ( IplImage * src ) [private]

Private paintCutImage. Show and Apply ROI before dealing with the image

Parameters:

src

IplImage

Definition at line 324 of file mainFrame.cpp.

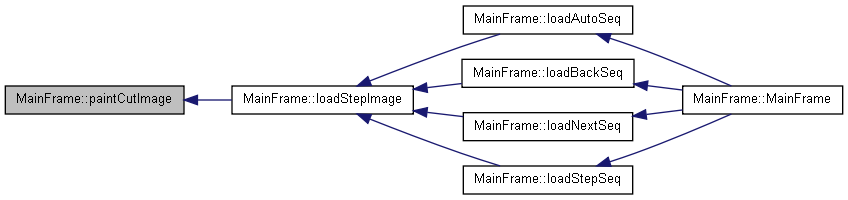

Here is the caller graph for this function:

void MainFrame::showAbout ( ) [private, slot]

Private slot. Show Help-About

Definition at line 70 of file mainFrame.cpp.

Here is the caller graph for this function:

void MainFrame::updateKalmanBlobPrediction ( ) [private, slot]

Private slot. Kalman blob update

Definition at line 398 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void MainFrame::updateKalmanPrediction ( ) [private, slot]

Private slot. Kalman update

Definition at line 394 of file mainFrame.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

CBlob MainFrame::blobBegin [private]

Blob to predict

Definition at line 160 of file mainFrame.h.

int MainFrame::closeCvWindow [private]

Control to close previous window

Definition at line 154 of file mainFrame.h.

dialogMatrix MainFrame::dlgMat [private]

dialog matrix non modal window

Definition at line 173 of file mainFrame.h.

QStringList MainFrame::fileList [private]

Container to image list

Definition at line 156 of file mainFrame.h.

CBlobResult MainFrame::filterBlobs [private]

Blobs to kalman prediction

Definition at line 158 of file mainFrame.h.

float MainFrame::filterData[9] [private]

double filter matrix values

Definition at line 171 of file mainFrame.h.

int MainFrame::iStepFrame [private]

Actual image sequence index

Definition at line 164 of file mainFrame.h.

QString MainFrame::qPathLoaded [private]

Path with images loaded

Definition at line 152 of file mainFrame.h.

QString MainFrame::sSeparator [private]

Message separator

Definition at line 162 of file mainFrame.h.

Tracking MainFrame::track [static, private]

Tracking object

Definition at line 175 of file mainFrame.h.

Ui::mainFrameClass MainFrame::ui [private]

Private Ui. To use GUI options

Definition at line 129 of file mainFrame.h.

MainFrame Class Reference

Public Member Functions

Protected Member Functions

Private Slots

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Field Documentation
